VGroup Class Reference

An object management class that stores a set of objects to be updated and rendered in a batch. More...

#include <VGroup.h>

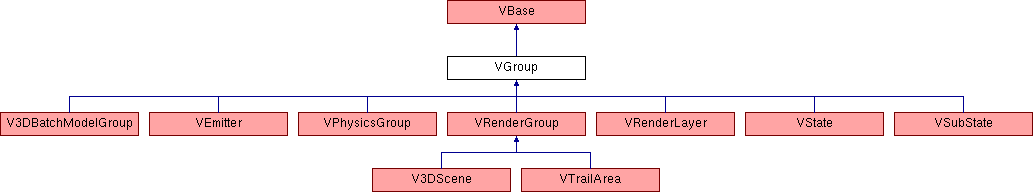

Inheritance diagram for VGroup:

Public Types
typedef VBase	VSUPERCLASS
	Used to call parent class functions when they are overrided in class.

Public Member Functions
	VGroup (unsigned int maxSize=0)
int	Length ()
VBase *	Add (VBase *object)
VBase *	Remove (VBase *object, bool splice=false)
VBase *	FirstAvailable ()
int	FirstNULL ()
VBase *	FirstExisting ()
VBase *	FirstAlive ()
VBase *	FirstDead ()
int	CountAlive (bool Recursive=false)
int	CountDead (bool Recursive=false)
VBase *	GetRandom (int min=0, int max=0)
void	ForEach (std::function< void(VBase *)> function, bool recursive=false)
void	ForEachAlive (std::function< void(VBase *)> function, bool recursive=false)
void	ForEachDead (std::function< void(VBase *)> function, bool recursive=false)
void	ForEachExists (std::function< void(VBase *)> function, bool recursive=false)
VBase *	GetGroupItem (int index)
template<class T >
T *	GetGroupItemAsType (int index)
int	GetIndexOfItem (VBase *object)
void	OrganiseNULLS ()
	Sort nullptr members to the bottom of the group.
void	Swap (int a, int b)
void	Sort (std::function< bool(VBase *, VBase *)> func)
void	Reverse ()
	Reverse order of group.
void	Clear ()
	Clears the whole group (does not destroy any of the members, that must be done using the Destroy method).
virtual void	Destroy () override
	Removes and/or destroys all objects inside the group before destroying extra data. (If an object is referenced in another VGroup, the object won't be destroyed)
virtual void	Kill () override
	Kills all living objects before killing the group itself.
virtual void	Revive () override
	Revives all dead objects before reviving the group itself.
virtual void	Update (float dt) override
virtual void	Draw (sf::RenderTarget &RenderTarget) override

Protected Attributes
std::vector< VBase * >	members
	VBase List.
int	length = 0
	Current amount of members in the list.
unsigned int	MaxSize = 0
	Maximum Size of the list, used if VGroup is set to have a fixed size.

Additional Inherited Members
Static Public Member Functions inherited from VBase
static const wchar_t *	VString (const char *fmt,...)
static void	VLog (const char *fmt,...)
static void	VLogError (const char *fmt,...)
static void	VClearLog ()
Public Attributes inherited from VBase
bool	active = true
	Base can be updated using Update if true.
bool	visible = true
	Base can be rendered using Draw if true.
bool	alive = true
	Helper member that is mainly used filter out behaviours to objects which aren't alive in the scene.
bool	exists = true
	Base can be updated and rendered if true, else it would no longer be treated as being part of the scene.
VType	type = NONE
	Base object type, typically set in the constructor of an inherited object to specify what type it is.
uint32_t	RefCount = 0
	Counts the amount of times the object is referenced in groups, ensures an object is only destroyed when no longer part of a single group.

Detailed Description

An object management class that stores a set of objects to be updated and rendered in a batch.

Constructor & Destructor Documentation

VGroup()

VGroup::VGroup ( unsigned int  maxSize = 0 )

inline

Parameters

maxSize

The fixed length of the group. If 0, then the VGroup has no limit in size.

Member Function Documentation

Add()

VBase* VGroup::Add

(

VBase *

object

)

Parameters

object

The VBase object to add to the group.

CountAlive()

int VGroup::CountAlive

(

bool

Recursive = false

)

Returns

Amount of alive objects.

CountDead()

int VGroup::CountDead

(

bool

Recursive = false

)

Returns

Amount of dead objects.

Draw()

virtual void VGroup::Draw ( sf::RenderTarget &  RenderTarget )

overridevirtual

Renders all alive and visible objects in the group.

Parameters

RenderTarget

The game's sf::RenderTarget object to render data onto.

Reimplemented from VBase.

Reimplemented in VEmitter, VSubState, VRenderGroup, V3DScene, VRenderLayer, VTrailArea, and V3DBatchModelGroup.

FirstAlive()

VBase* VGroup::FirstAlive

(

)

Returns

First object that is alive.

FirstAvailable()

VBase* VGroup::FirstAvailable

(

)

Returns

First object regardless of state.

FirstDead()

VBase* VGroup::FirstDead

(

)

Returns

First object that is dead.

FirstExisting()

VBase* VGroup::FirstExisting

(

)

Returns

First object that exists in scene.

FirstNULL()

int VGroup::FirstNULL

(

)

Returns

First index that is set to nullptr.

ForEach()

void VGroup::ForEach	(	std::function< void(VBase *)>	function,
		bool	recursive = false
	)

Applies function for each object in group.

ForEachAlive()

void VGroup::ForEachAlive	(	std::function< void(VBase *)>	function,
		bool	recursive = false
	)

Applies function for each object in group that's alive.

ForEachDead()

void VGroup::ForEachDead	(	std::function< void(VBase *)>	function,
		bool	recursive = false
	)

Applies function for each object in group that's dead.

ForEachExists()

void VGroup::ForEachExists	(	std::function< void(VBase *)>	function,
		bool	recursive = false
	)

Applies function for each object in group that exists.

GetGroupItem()

VBase* VGroup::GetGroupItem

(

int

index

)

Gets an object from a specified index in group.

GetGroupItemAsType()

template<class T >

T* VGroup::GetGroupItemAsType ( int  index )

inline

Gets an object from a specified index in group.

GetIndexOfItem()

int VGroup::GetIndexOfItem

(

VBase *

object

)

Gets the index of a specific object.

GetRandom()

VBase* VGroup::GetRandom	(	int	min = 0,
		int	max = 0
	)

Returns

Random object from a set range. Min and Max will be clamped to 0 and maxSize.

Length()

int VGroup::Length

(

)

Returns

The current size of the group based on amount of active elements.

Remove()

VBase* VGroup::Remove	(	VBase *	object,
		bool	splice = false
	)

Parameters

object	The VBase object to remove from the group (does not destroy any of the members, that must be done using the Destroy method).
splice	If true, all elements above the object will be moved down, else the element will become null.

Sort()

void VGroup::Sort

(

std::function< bool(VBase *, VBase *)>

func

)

Sorts objects based on function.

Swap()

void VGroup::Swap	(	int	a,
		int	b
	)

Swaps order of two groups.

Update()

virtual void VGroup::Update ( float  dt )

overridevirtual

Updates all alive and active objects in the group.

Parameters

dt	Delta Time between the previous and current frame.

Reimplemented from VBase.

Reimplemented in VEmitter, VSubState, VRenderGroup, VPhysicsGroup, V3DScene, VState, and VRenderLayer.

---

The documentation for this class was generated from the following file:

• D:/Development/Libs/Vigilante-Game-Framework/VFrame/VGroup.h
