VPhysicsJointBase Class Reference

The base class for all types of physics joints. The class itself does not set up the joint itself, but makes it possible to add to the physics world and set properties of one. More...

#include <VPhysicsJoints.h>

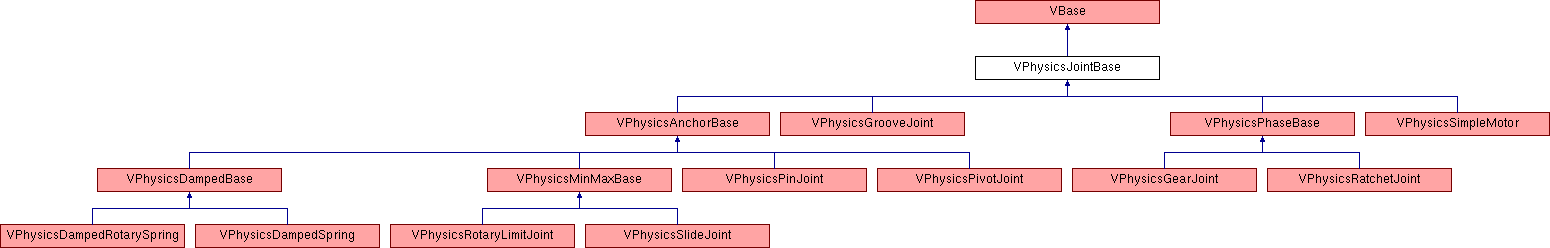

Inheritance diagram for VPhysicsJointBase:

Public Types
typedef VBase	VSUPERCLASS
	Used to call parent class functions when they are overrided in class.

Public Member Functions
	VPhysicsJointBase ()=default
	Default constructor.
	VPhysicsJointBase (VPhysicsCPBody *BodyA, VPhysicsCPBody *BodyB)
virtual void	Destroy () override
	Destroys object and any data that must be destroyed.
void	Initialise (VPhysicsCPSpace *space)
void	Deinitialise (VPhysicsCPSpace *space)
VPhysicsCPConstraint *	GetConstraint ()
VPhysicsCPBody *	GetBodyA ()
VPhysicsCPBody *	GetBodyB ()
void	SetMaxForce (float Max)
float	GetMaxForce ()
void	SetErrorBias (float Bias)
float	GetErrorBias ()
void	SetMaxBias (float Bias)
float	GetMaxBias ()
void	SetCollideBodies (bool value)
bool	DoesCollideBodies ()
float	GetImpulse ()
Public Member Functions inherited from VBase
virtual void	Kill ()
virtual void	Revive ()
	Revives the object by setting both alive and exists back to true.
virtual void	Update (float dt)
virtual void	Draw (sf::RenderTarget &RenderTarget)

Protected Types
enum	VPhysicsJointType {   PIN, SLIDE, PIVOT, GROOVE,   DAMPED, DAMPEDROTARY, ROTARYLIMIT, RATCHET,   GEAR, SIMPLEMOTOR, NUMJOINTTYPES }
	The types of Physics joints that can be set.

Protected Attributes
unsigned int	type = -1
	The Type of joint the object is. Used for Get/Set function calls.
VPhysicsCPConstraint *	constraint = NULL
	The constraint object.

Additional Inherited Members
Static Public Member Functions inherited from VBase
static const wchar_t *	VString (const char *fmt,...)
static void	VLog (const char *fmt,...)
static void	VLogError (const char *fmt,...)
static void	VClearLog ()
Public Attributes inherited from VBase
bool	active = true
	Base can be updated using Update if true.
bool	visible = true
	Base can be rendered using Draw if true.
bool	alive = true
	Helper member that is mainly used filter out behaviours to objects which aren't alive in the scene.
bool	exists = true
	Base can be updated and rendered if true, else it would no longer be treated as being part of the scene.
VType	type = NONE
	Base object type, typically set in the constructor of an inherited object to specify what type it is.
uint32_t	RefCount = 0
	Counts the amount of times the object is referenced in groups, ensures an object is only destroyed when no longer part of a single group.

Detailed Description

The base class for all types of physics joints. The class itself does not set up the joint itself, but makes it possible to add to the physics world and set properties of one.

Constructor & Destructor Documentation

VPhysicsJointBase()

VPhysicsJointBase::VPhysicsJointBase	(	VPhysicsCPBody *	BodyA,
		VPhysicsCPBody *	BodyB
	)

Parameters

BodyA	The first physics body to apply the joint to.
BodyB	The second physics body to apply the joint to.

Member Function Documentation

Deinitialise()

void VPhysicsJointBase::Deinitialise

(

VPhysicsCPSpace *

space

)

Deinitises and removes the physics joint from the world.

Parameters

space

The physics space to remove the joint from.

DoesCollideBodies()

bool VPhysicsJointBase::DoesCollideBodies

(

)

Returns

When two bodies collide, Chipmunk ignores the collisions if this property is set to false on any constraint that connects the two bodies. Defaults to true. This can be used to create a chain that self collides, but adjacent links in the chain do not collide.

GetBodyA()

VPhysicsCPBody* VPhysicsJointBase::GetBodyA

(

)

Returns

The first body in the joint.

GetBodyB()

VPhysicsCPBody* VPhysicsJointBase::GetBodyB

(

)

Returns

The second body in the joint.

GetConstraint()

VPhysicsCPConstraint* VPhysicsJointBase::GetConstraint

(

)

Returns

The constraint that makes up the joint.

GetErrorBias()

float VPhysicsJointBase::GetErrorBias

(

)

Returns

The percentage of joint error that remains unfixed after a second. This works exactly the same as the collision bias property of a space, but applies to fixing error (stretching) of joints instead of overlapping collisions.

GetImpulse()

float VPhysicsJointBase::GetImpulse

(

)

Returns

The most recent impluse that has been applied. Divide by the timestep to get the force.

GetMaxBias()

float VPhysicsJointBase::GetMaxBias

(

)

Returns

The maximum speed at which the constraint can apply error correction. Defaults to INFINITY.

GetMaxForce()

float VPhysicsJointBase::GetMaxForce

(

)

Returns

The maximum force that the constraint can use to act on the two bodies. Defaults to INFINITY.

Initialise()

void VPhysicsJointBase::Initialise

(

VPhysicsCPSpace *

space

)

Initialises the physics joint.

Parameters

space

The physics space to initialise the joint to.

SetCollideBodies()

void VPhysicsJointBase::SetCollideBodies

(

bool

value

)

Parameters

value

When two bodies collide, Chipmunk ignores the collisions if this property is set to false on any constraint that connects the two bodies. Defaults to true. This can be used to create a chain that self collides, but adjacent links in the chain do not collide.

SetErrorBias()

void VPhysicsJointBase::SetErrorBias

(

float

Bias

)

Parameters

Bias	The percentage of joint error that remains unfixed after a second. This works exactly the same as the collision bias property of a space, but applies to fixing error (stretching) of joints instead of overlapping collisions.

SetMaxBias()

void VPhysicsJointBase::SetMaxBias

(

float

Bias

)

Parameters

Bias	The maximum speed at which the constraint can apply error correction. Defaults to INFINITY.

SetMaxForce()

void VPhysicsJointBase::SetMaxForce

(

float

Max

)

Parameters

Max	The maximum force that the constraint can use to act on the two bodies. Defaults to INFINITY.

---

The documentation for this class was generated from the following file:

• D:/Development/Libs/Vigilante-Game-Framework/VFrame/VPhysicsJoints.h
