VObject Class Reference

Base object class that handles movement, rotation and collisions. More...

#include <VObject.h>

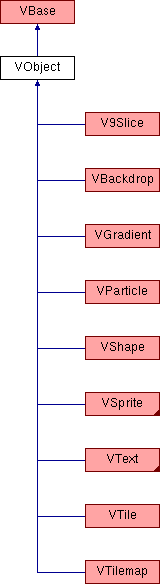

Inheritance diagram for VObject:

Public Types
enum	SidesTouching : unsigned char {   TOUCHNONE = 0, TOUCHLEFT = 1 << 0, TOUCHRIGHT = 1 << 1, TOUCHTOP = 1 << 2,   TOUCHBOTTOM = 1 << 3, TOUCHWALL = TOUCHLEFT | TOUCHRIGHT, TOUCHALL = TOUCHLEFT | TOUCHRIGHT | TOUCHTOP | TOUCHBOTTOM }
	Flags for which sides are allowed to check if being overlapped for collision purposes.
typedef VBase	VSUPERCLASS
	Used to call parent class functions when they are overrided in class.

Public Member Functions
	VObject (sf::Vector2f position, sf::Vector2f size=sf::Vector2f())
	VObject (float x=0, float y=0, float width=0, float height=0)
void	SetPositionAtCentre (float x, float y)
void	SetPositionAtCentre (sf::Vector2f newPos)
bool	IsSolid ()
virtual void	Reset (sf::Vector2f newPos)
virtual void	Reset (float x, float y)
virtual void	Hurt (float damage)
virtual void	Update (float dt)
virtual void	Draw (sf::RenderTarget &RenderTarget)
Public Member Functions inherited from VBase
virtual void	Destroy ()
	Destroys object and any data that must be destroyed.
virtual void	Kill ()
virtual void	Revive ()
	Revives the object by setting both alive and exists back to true.

Static Public Member Functions
static bool	separate (VObject *a, VObject *b)
static bool	separateCircle (VObject *a, VObject *b)
static bool	touchFlag (VObject *a, VObject *b)
static float	computeVelocity (float v, float a, float d, float max, float dt)
static bool	TestInView (const sf::View &renderTargetView, sf::View *defaultView, VObject *o, const sf::FloatRect &renderBox=sf::FloatRect())
Static Public Member Functions inherited from VBase
static const wchar_t *	VString (const char *fmt,...)
static void	VLog (const char *fmt,...)
static void	VLogError (const char *fmt,...)
static void	VClearLog ()

Public Attributes
sf::Vector2f	Position
	Position of the object.
sf::Vector2f	Size
	Size of the object.
sf::Vector2f	Last
	Position of the object on the previous frame.
float	Radius = 0
	Radius amount for Circle Collisions.
float	Angle = 0
	Angle of object.
float	AngleVelocity = 0
	Velocity of rotation.
float	AngleAcceleration = 0
	Acceleration of rotation.
float	AngleDrag = 0
	Drag of rotation.
float	AngleMax = 10000
	Maximum Velocity of rotation.
bool	Moves = true
	If true, updates the objects position and angle.
sf::Vector2f	Velocity
	Velocity of movement.
sf::Vector2f	Acceleration
	Acceleration of movement.
sf::Vector2f	Drag
	Drag of movement.
sf::Vector2f	MaxVelocity
	Maximum velocity of movement.
sf::Vector2f	ScrollFactor
	The amount the object will appear to move when the camera scrolls (1.0f = Scrolls as fast as the camera, 0.5f = Scrolls half as fast as the camera). Good for parallax scrolling.
float	RotateFactor = 1
	The amount the object will appear to rotate when the camera rotates (1.0f = Rotates as fast as the camera, 0.5f = Rotates half as fast as the camera). Good for parallax scrolling.
float	ZoomFactor = 1
	The amount the object will appear to scale when the camera zooms (1.0f = Scales as fast as the camera, 0.5f = Scales half as fast as the camera). Good for parallax scrolling.
float	Elasticity = 0
	Bounciness of the object (0 assumes no bounce)
float	Mass = 1
	Mass of object in comparison to other objects in world.
float	Health = 100
	Standard health value (object dies if health is <= 0 when modified in the Hurt function)
bool	Immovable = false
	If true, the object will not change its velocity on collision.
unsigned char	Touching = SidesTouching::TOUCHNONE
	Which sides are currently touching (is reset on each Update call!)
unsigned char	WasTouching = SidesTouching::TOUCHNONE
	Which sides on previous frame were touching (is reset on each Update call!)
unsigned char	AllowCollisions = SidesTouching::TOUCHALL
	Which sides are allowed to check collisions for.
bool	CollisionXDrag = true
	Useful for moving platforms.
Public Attributes inherited from VBase
bool	active = true
	Base can be updated using Update if true.
bool	visible = true
	Base can be rendered using Draw if true.
bool	alive = true
	Helper member that is mainly used filter out behaviours to objects which aren't alive in the scene.
bool	exists = true
	Base can be updated and rendered if true, else it would no longer be treated as being part of the scene.
VType	type = NONE
	Base object type, typically set in the constructor of an inherited object to specify what type it is.
uint32_t	RefCount = 0
	Counts the amount of times the object is referenced in groups, ensures an object is only destroyed when no longer part of a single group.

Static Public Attributes
static float	SeparateBias
	Adds to the maximum overlap distance between objects.

Protected Member Functions
virtual void	updateMotion (float dt)
virtual void	updateTransform ()
	Update the tranform.

Detailed Description

Base object class that handles movement, rotation and collisions.

Constructor & Destructor Documentation

VObject() [1/2]

VObject::VObject ( sf::Vector2f  position, sf::Vector2f  size = sf::Vector2f()  )

inline

Parameters

position	Position of the sprite.
size	Size of the sprite (also sets the size of the render area).

VObject() [2/2]

VObject::VObject ( float  x = 0, float  y = 0, float  width = 0, float  height = 0  )

inline

Parameters

x	X position of the sprite.
y	Y position of the sprite.
width	Width of the sprite (also sets the width of the render area).
height	Height of the sprite (also sets the height of the render area).

Member Function Documentation

computeVelocity()

static float VObject::computeVelocity ( float  v, float  a, float  d, float  max, float  dt  )

static

Base function for calculating velocity. If the acceleration parameter doesn't equal zero, then the function uses V = iV + A*dt. Otherwise it will apply drag to the velocity. The function will also cap the resulting velocity to whatever the max is, assuming max is greater than 0.

Parameters

v	Velocity value.
a	Acceleration value.
d	Drag value.
max	Max Velocity value.
dt	Delta Time between the previous and current frame.

Returns

The resulting velocity.

Draw()

virtual void VObject::Draw ( sf::RenderTarget &  RenderTarget )

virtual

Draws object.

Parameters

RenderTarget

The game's sf::RenderTarget object to render data onto.

Reimplemented from VBase.

Reimplemented in VTilemap, VText, VGradient, VSprite, VShape, VTiledSprite, VBackdrop, and V9Slice.

Hurt()

virtual void VObject::Hurt ( float  damage )

virtual

Reduces health and kills object if health is below 0.

Parameters

damage

The value to remove from health.

Reimplemented in VTilemap.

IsSolid()

bool VObject::IsSolid

(

)

Returns

True if collision is allowed on object on any side.

Reset() [1/2]

virtual void VObject::Reset ( sf::Vector2f  newPos )

virtual

Resets object with new position.

Parameters

newPos

New position of the object.

Reimplemented in VTilemap.

Reset() [2/2]

virtual void VObject::Reset ( float  x, float  y  )

virtual

Resets object with new position.

Parameters

x	New X position of the object.
y	New Y position of the object.

Reimplemented in VTilemap, and VParticle.

separate()

static bool VObject::separate ( VObject *  a, VObject *  b  )

static

Separate objects that overlap based on rectangle collision.

Parameters

a	Left Object.
b	Right Object.

Returns

True if there is an overlap and separation.

separateCircle()

static bool VObject::separateCircle ( VObject *  a, VObject *  b  )

static

Separate objects that overlap based on circle collision.

Parameters

a	Left Object.
b	Right Object.

Returns

True if there is an overlap and separation.

SetPositionAtCentre() [1/2]

void VObject::SetPositionAtCentre	(	float	x,
		float	y
	)

Sets object position based on the centre of it's circular area.

Parameters

x	New X position of the object at it's centre.
y	New Y position of the object at it's centre.

SetPositionAtCentre() [2/2]

void VObject::SetPositionAtCentre

(

sf::Vector2f

newPos

)

Sets object position based on the centre of it's circular area.

Parameters

newPos

New position of the object at it's centre.

TestInView()

static bool VObject::TestInView ( const sf::View &  renderTargetView, sf::View *  defaultView, VObject *  o, const sf::FloatRect &  renderBox = sf::FloatRect()  )

static

Function used to for testing if VObject is in view of the camera, useful to test if a VObject should be rendered if in view of the a Camera.

Parameters

renderTargetView	The sf::View to test the VObject with. You can get this from a VCamera or sf::RenderTarget in the Draw function.
defaultView	A modifiable sf::View that has the same size as the renderTargetView, but is transformed to factor in parallax (e.g. ScrollFactor, RotateFactor and ZoomFactor). This property is modified in the function, but the size and position should be default values.
o	The VObject to test with, must not be NULL.
renderBox	The render area of the object. Default is the Position and Size of the VObject, but this parameter can use whatever custom one is provided.

Returns

If the VObject is within the rectangle of the view (factoring in ScrollFactor, RotateFactor and ZoomFactor), then returns true.

touchFlag()

static bool VObject::touchFlag ( VObject *  a, VObject *  b  )

static

Process touch test.

Parameters

a	Left Object.
b	Right Object.

Returns

True if there is an overlap.

Update()

virtual void VObject::Update ( float  dt )

virtual

Updates object and any data it contains.

Parameters

dt	Delta Time between the previous and current frame.

Reimplemented from VBase.

Reimplemented in VTilemap, VTypedText, VSprite, VBackdrop, VParticle, VTile, and VTextPath.

updateMotion()

virtual void VObject::updateMotion ( float  dt )

protectedvirtual

Updates the position and rotation of object. By default all velocity values will be set using the computeVelocity function + velocity * delta time.

Parameters

dt	Delta Time between the previous and current frame.

---

The documentation for this class was generated from the following file:

• D:/Development/Libs/Vigilante-Game-Framework/VFrame/VObject.h
